Intel Celeron Industrial Fanless PC With DDR3L 8GB RAM And Dual COM Linux
Intel Celeron Fanless PC Description:
This Mini PC is equipped with a half-height Mini PCIE slot and supports flexible expansion of WiFi and 4G module, which can easily meet the requirements of multiple scenarios such as mobile office and remote monitoring.
Onboard Realtek 8111H/G Gigabit network port ensures stable and high-speed transmission of wired network. Dual display output (VGA+HDMI) supports synchronous and asynchronous dual screen mode to meet the needs of multitasking and digital signage display.
Pre-installed Win7/8/10 and Linux/Ubuntu/CentOS and other multi-system compatibility solutions, compatible with industrial control, education, medical, light office and other diverse application scenarios.
Compact size, low-power fanless design, wall-mounted installation to release desktop space, is an efficient computing partner in the era of intelligence.
Intel Celeron Fanless PC Details:
| CPU | Intel Celeron J1800 2 Cores 2 Threads Processor, 2.41 GHz Burst Frequency, 1MB L2 Cache, 10W TDP, 14nm Lithography Intel Celeron J1900 4 Cores 4 Threads Processor, 2.42 GHz Burst Frequency, 2MB L2 Cache, 10W TDP, 22nm Lithography |
| GPU | Intel® HD Graphics for Intel Atom® Processor Z3700 Series |
| Memory | 1*204 Pin DDR3L SODIMM, Max Up To 8GB |
| Hard Disk | 1*mSATA SSD, 1*SATA HDD/SSD |
| Expansion | 1*half-height Mini PCIE, Support WiFi/4G Module |
| Ethernet | 1*Realtek 8111H/8111G Gigabit Ethernet |
| Display | 1*VGA, 1*HDMI, Support Dual Screen Synchronous Or Asynchronous Display |
| AUD | ALC269 HD Audio Decoding Controller |
| I/O Interface | 4*USB3.0, 2*USB2.0,2*COM(RS-232), 1*LAN, 1*VGA, 1*HDMI, 1*SPK, 1*MIC, 1*Power Switch, 1*DC |
| Power | 1*DC 12V 3A |
| Operating System | Windows 7, Windows 8, Windows 10, Linux, Ubuntu, CentOS, etc. |
| BIOS | AMI BIOS |
| Cooling System | High density metal grid heat dissipation |
| Material | Aluminum Alloy Chassis |
| Installation | Embedded, Wall-mounted, Desktop |
| Dimension/Weight | 173mm*124mm*36mm/ About 1.35KG |
| Suitable Environment | Operating Temperature: 0℃ to 50℃, Relative Humidity: 0%~95% (non-condensing) |
Intel Celeron Fanless PC Processors:
This industrial mini computer is equipped with Intel Celeron J1800/J1900 dual processor solution to meet the needs of differentiated computing power:
J1800 (dual-core dual-thread / 2.41GHz Rui frequency / 1MB cache / 14nm process) focuses on lightweight office, 10W ultra-low power consumption to achieve fanless silent operation. J1900 (quad-core, quad-thread / 2.42GHz Rui frequency / 2MB cache / 22nm process) strengthens multitasking and supports complex data operation and multi-device linkage.
Integrated Intel HD Graphics video card, smooth decoding 4K ultra HD video, to meet the needs of digital signage, multimedia teaching and other visual applications.
Intel Celeron Fanless PC Strong Environmental Adaptability:
The body is made of cold-rolled metal sheet, specially designed for industrial applications, with high hardness, vibration resistance, good mechanical properties, and high and low temperature resistance.

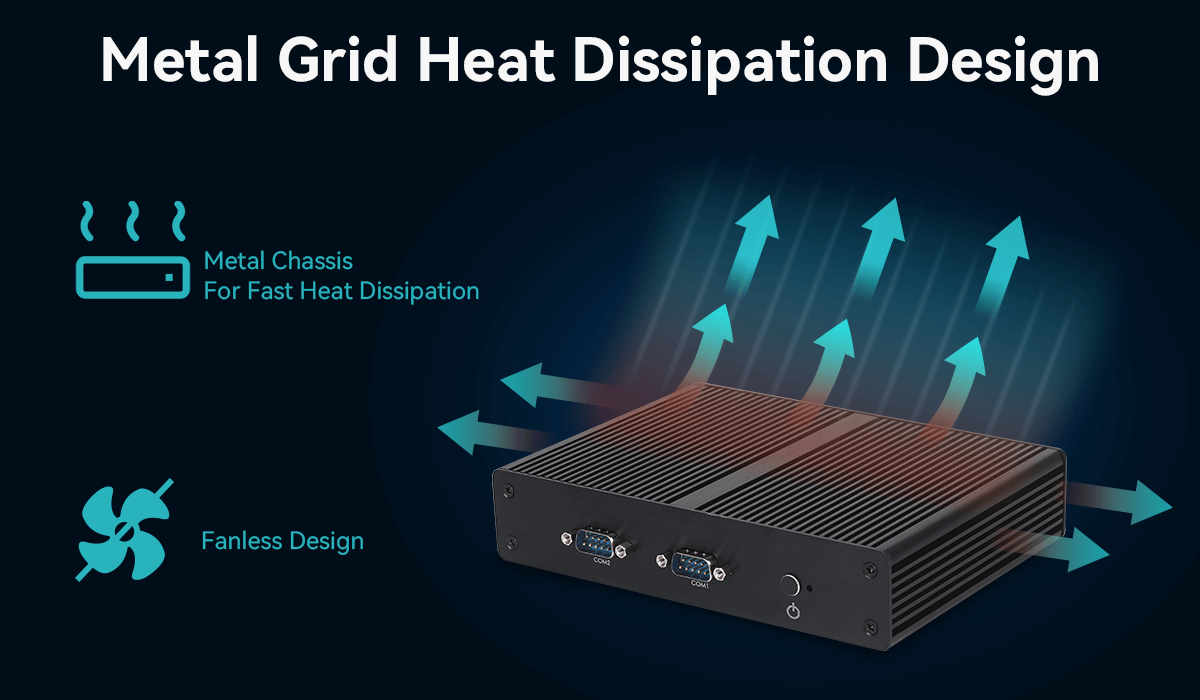

Intel Celeron Fanless PC Cooling Method:
The whole machine adopts a high-density heat dissipation grid design, which dissipates heat faster. The fanless design reduces the damage to the hardware caused by dust during operation, ensuring the hardware can be used for a longer period of time.
Intel Celeron Fanless PC Application:
With excellent performance and high adaptability, this Mini PC deeply integrates into multiple scenarios: enabling industrial machinery to achieve precise control; Help the entertainment sector to create a smooth audio and video experience; Adapt cash register and ATM to ensure stable and efficient transaction processing.
In the monitoring system, support 24 hours data processing and screen monitoring; Integrated into medical equipment to provide reliable computing power support for professional medical procedures.
Whether it is the high-definition display of electronic signs, or the intelligent management of vending machines, it can rely on multi-system compatibility, flexible expansion and other characteristics, become the core computing power partner of intelligent upgrading in industrial control, commercial operations, people's livelihood services and other fields.
